2026 BOMB MOTO B1 Complete
Limited stock available now with new inventory being added daily

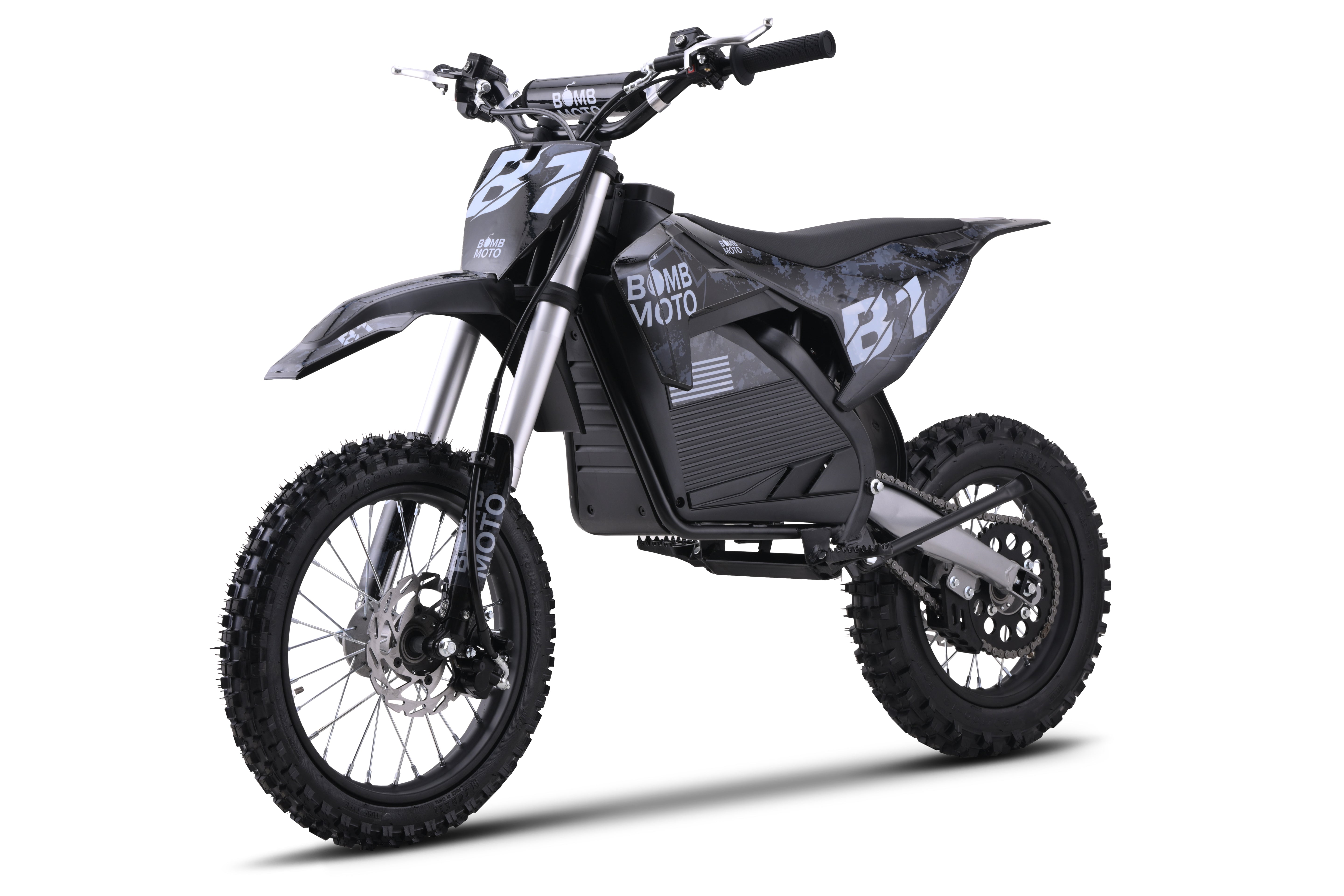

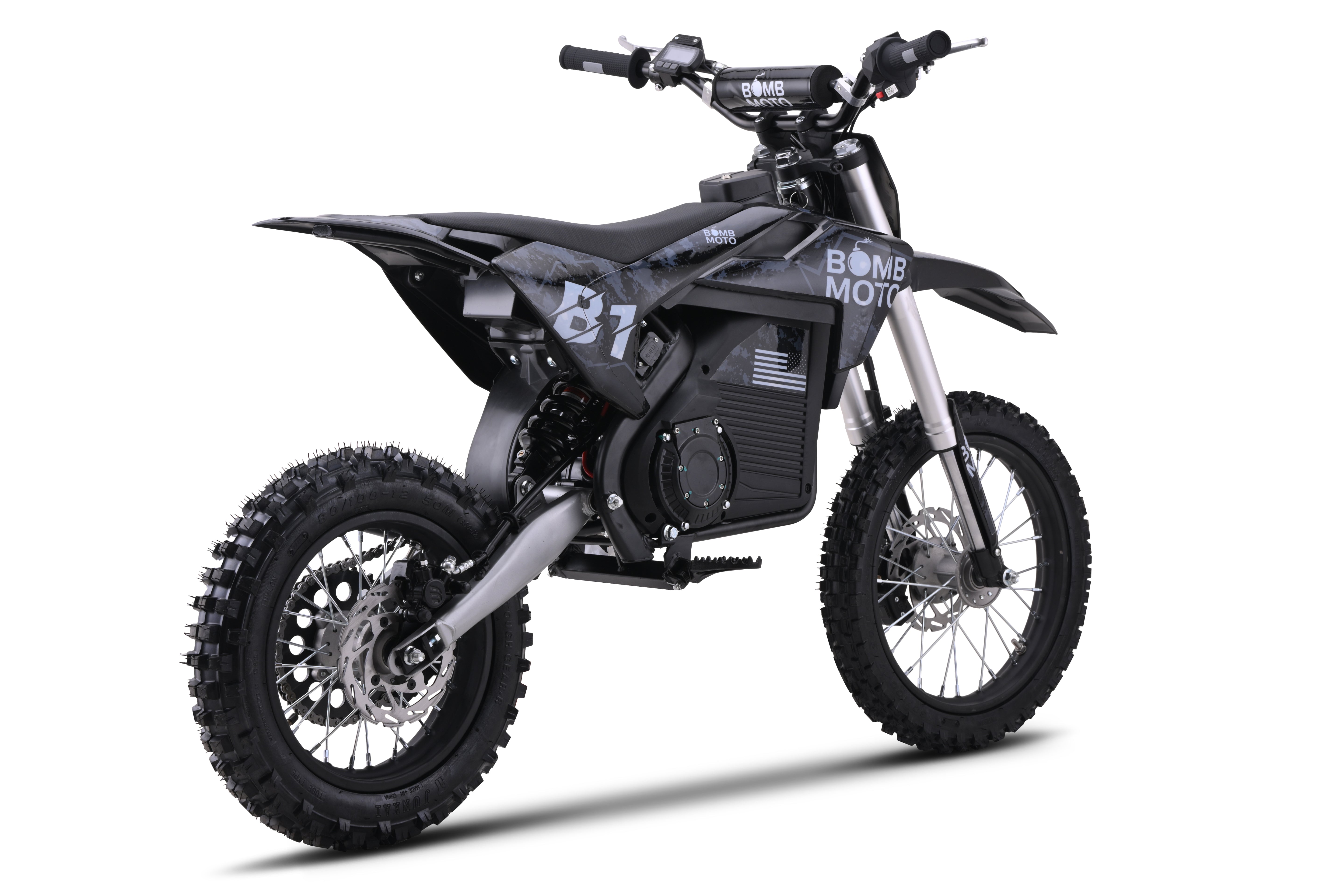

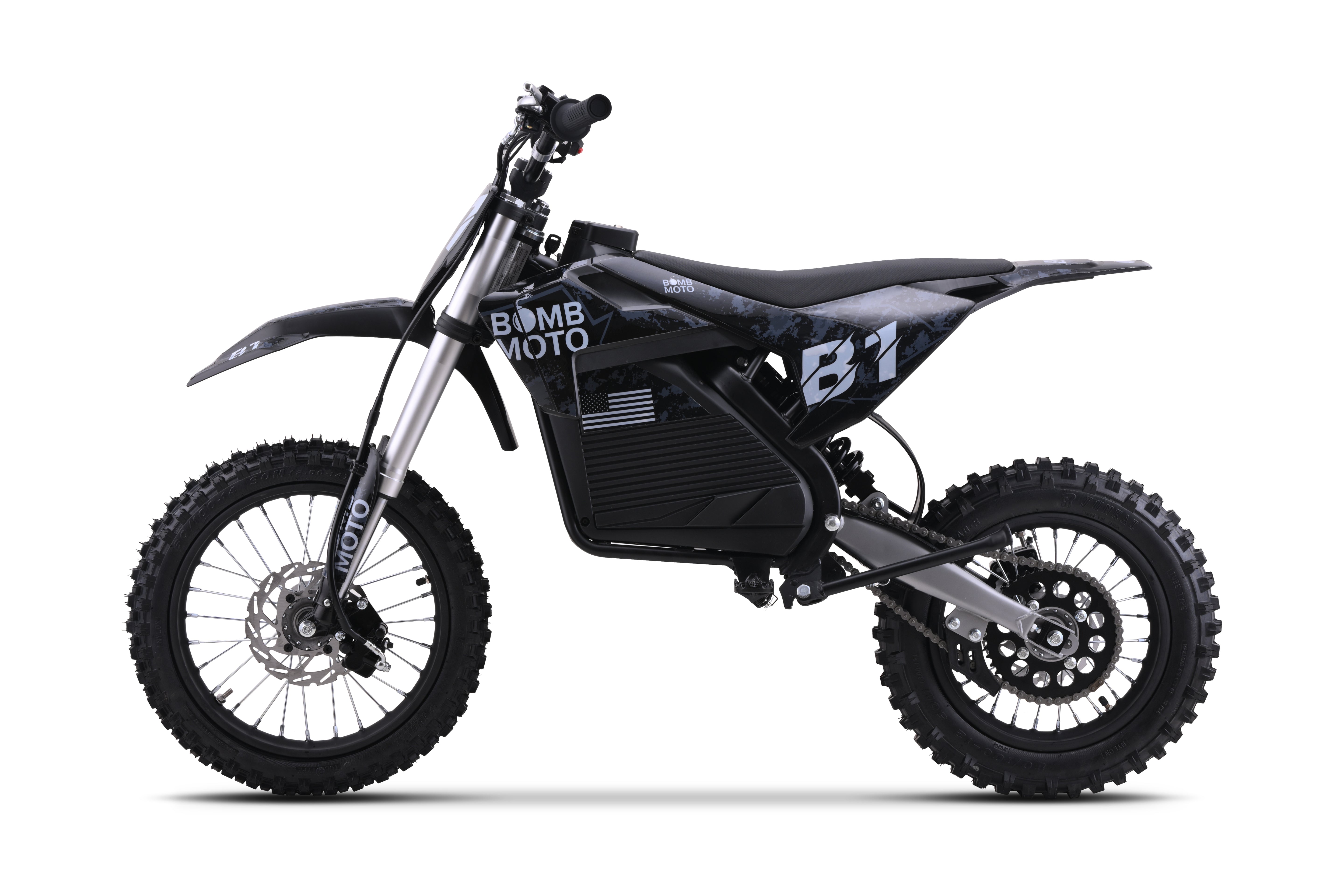

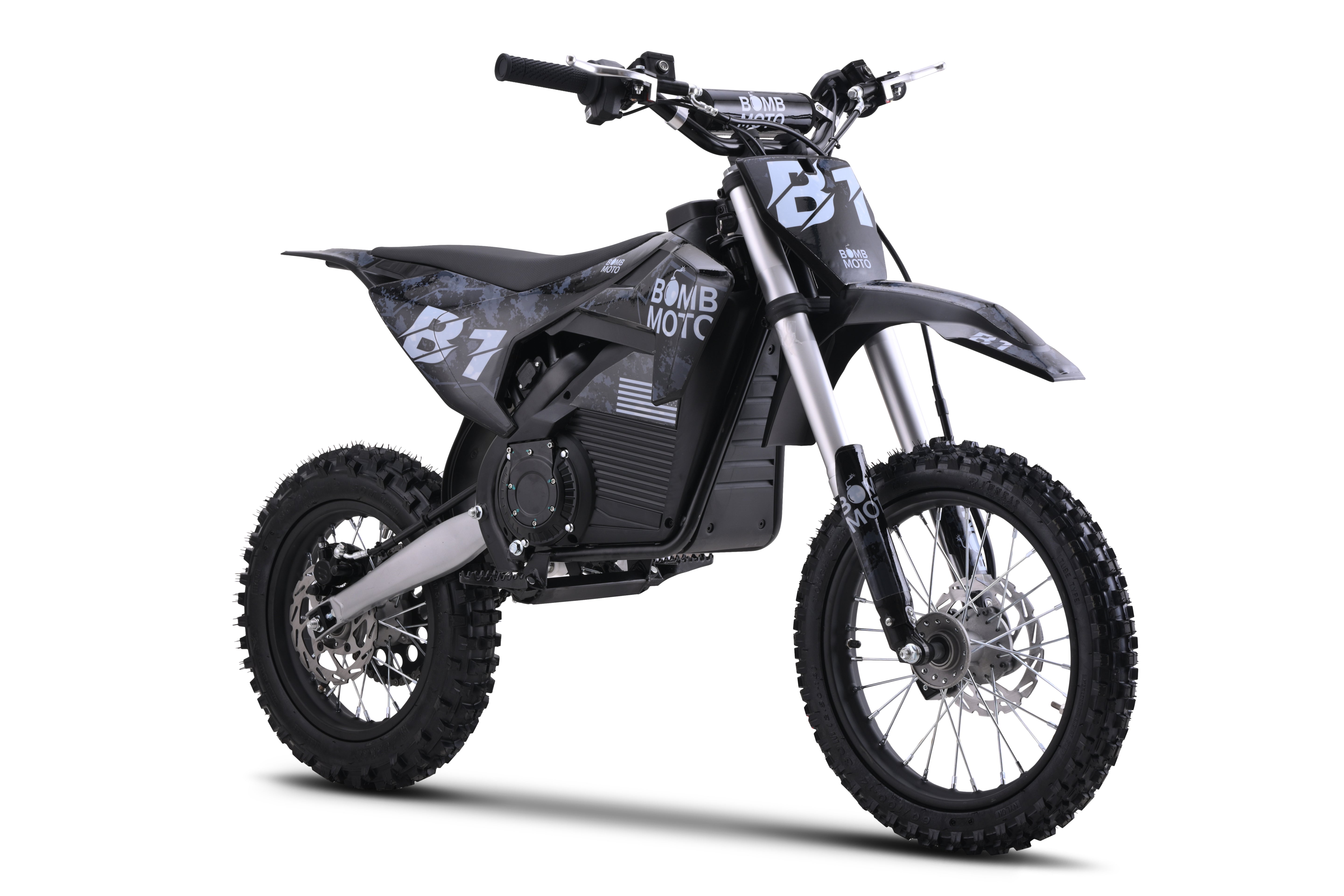

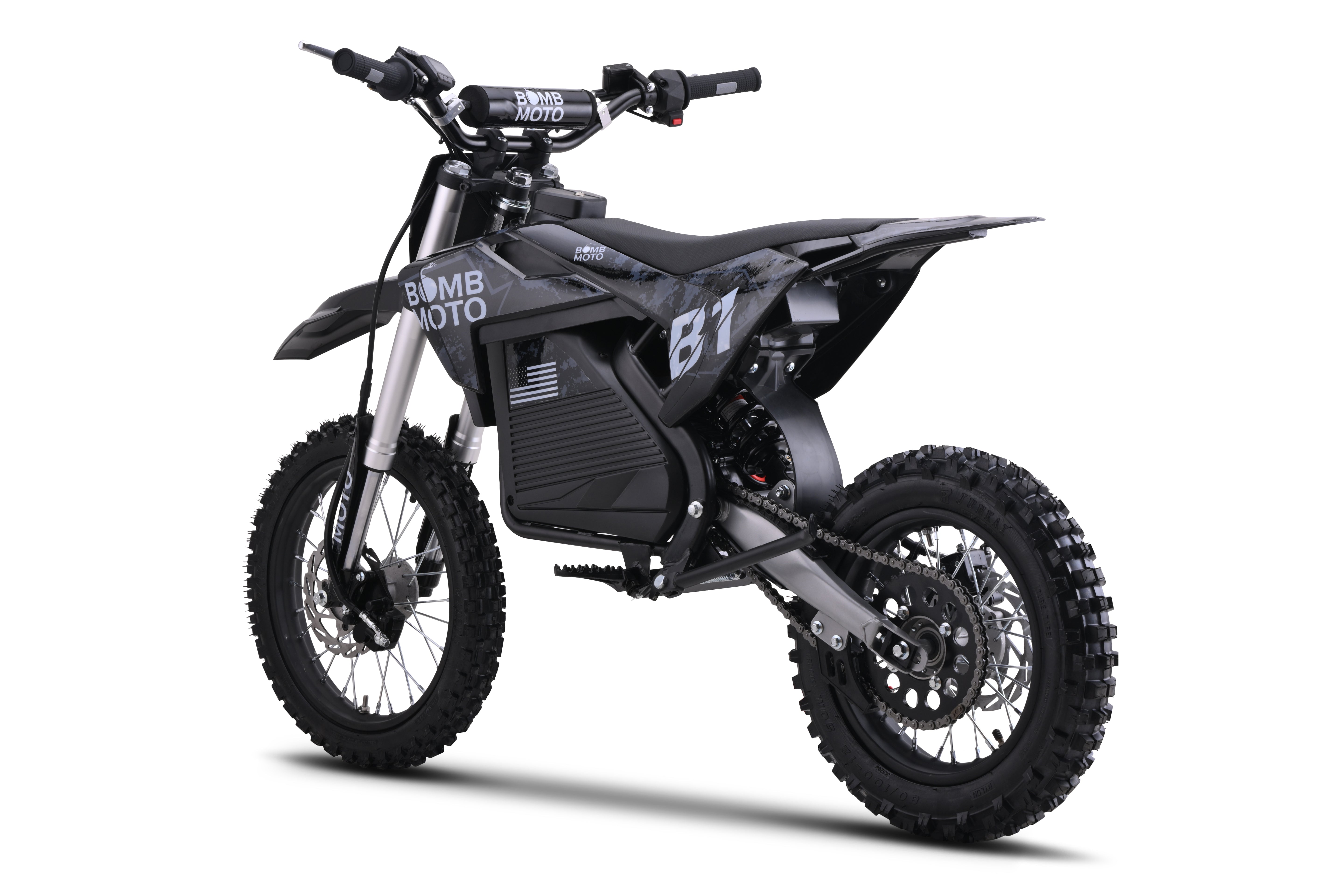

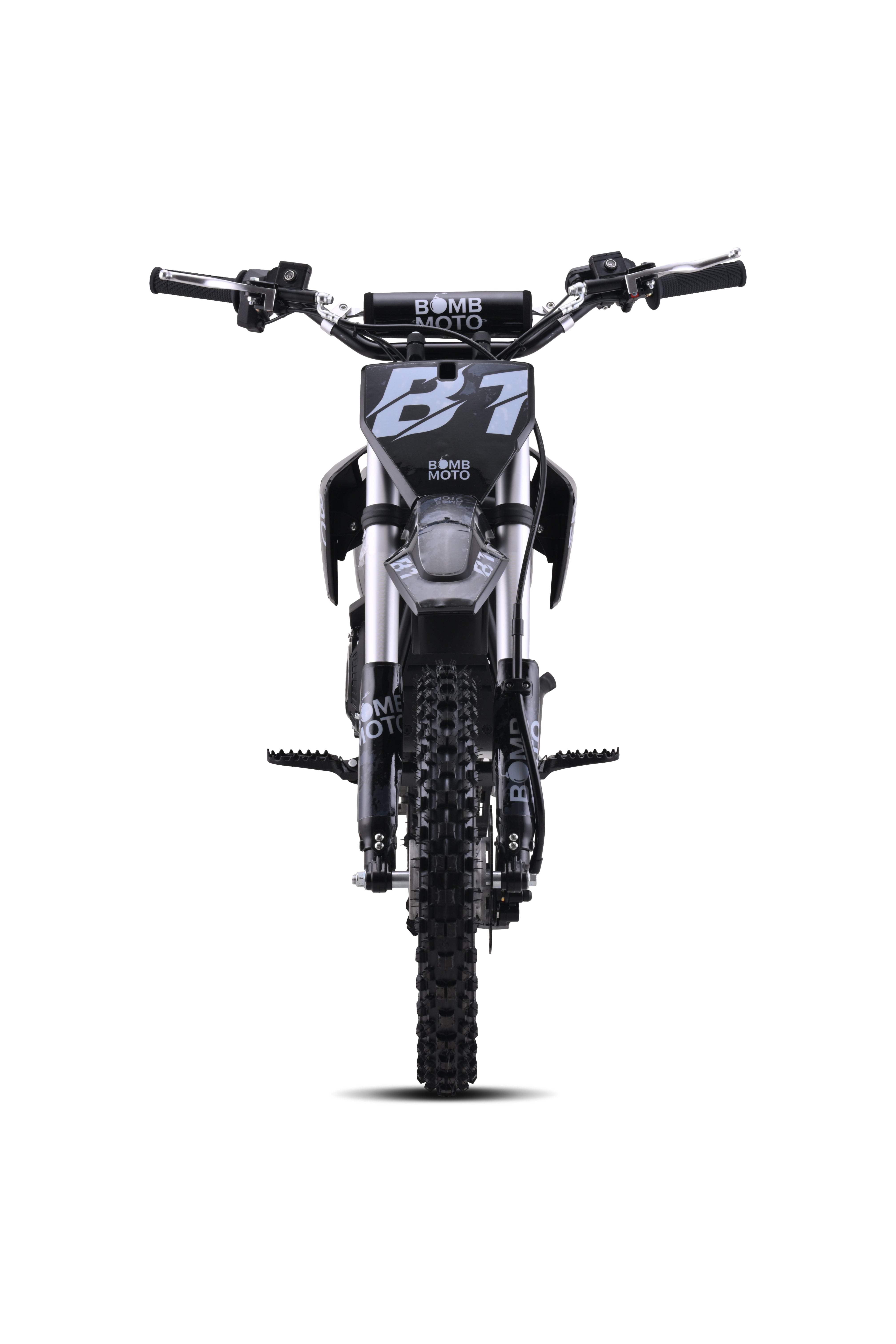

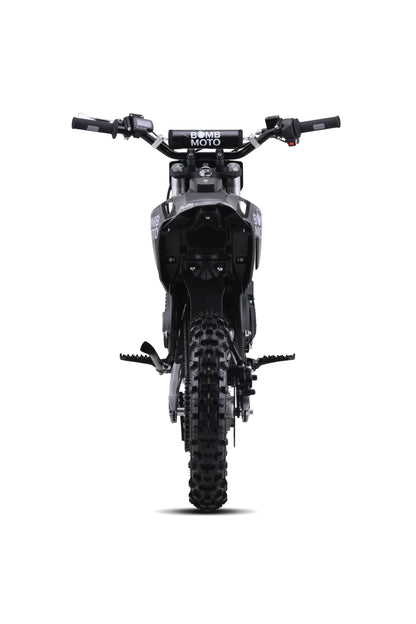

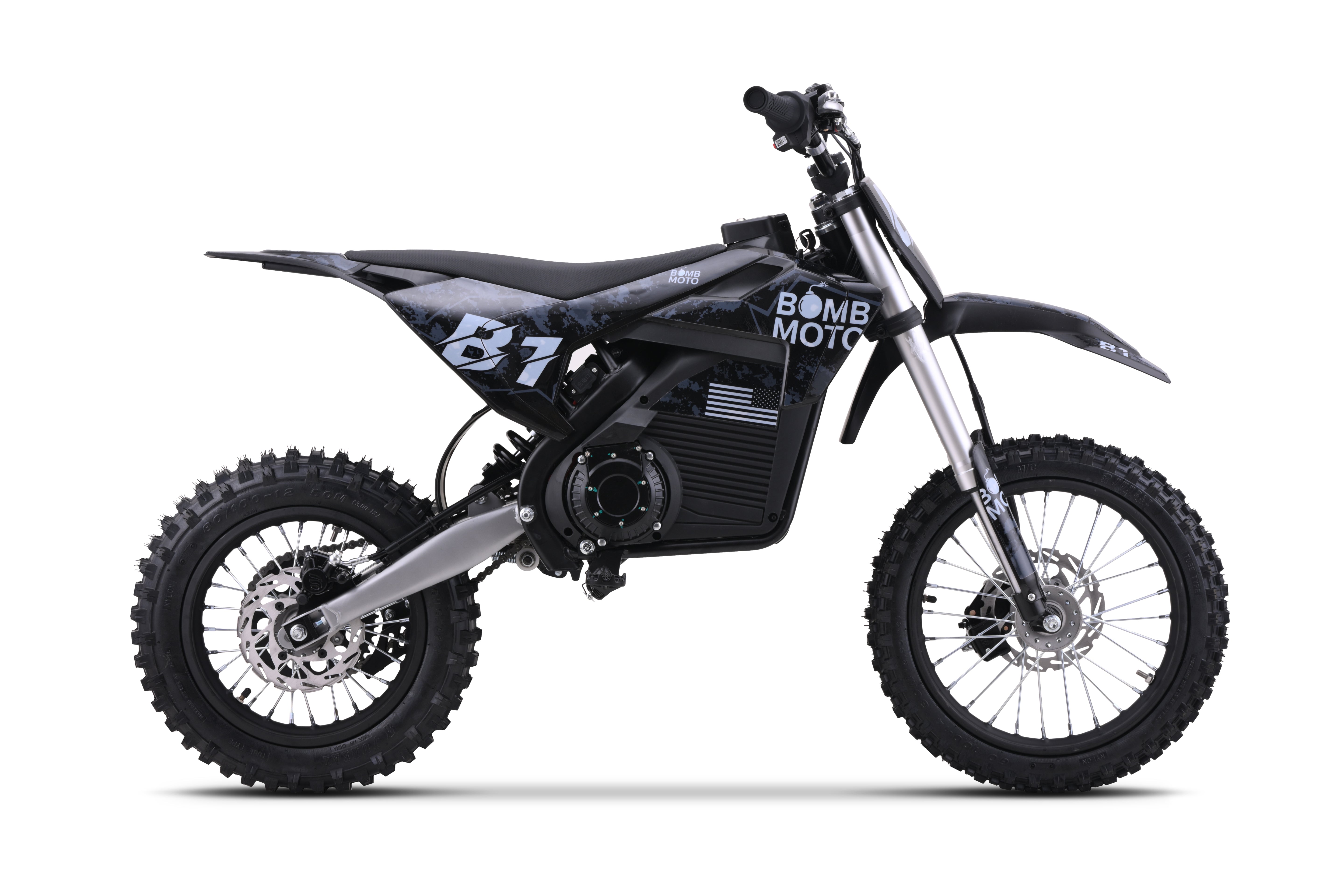

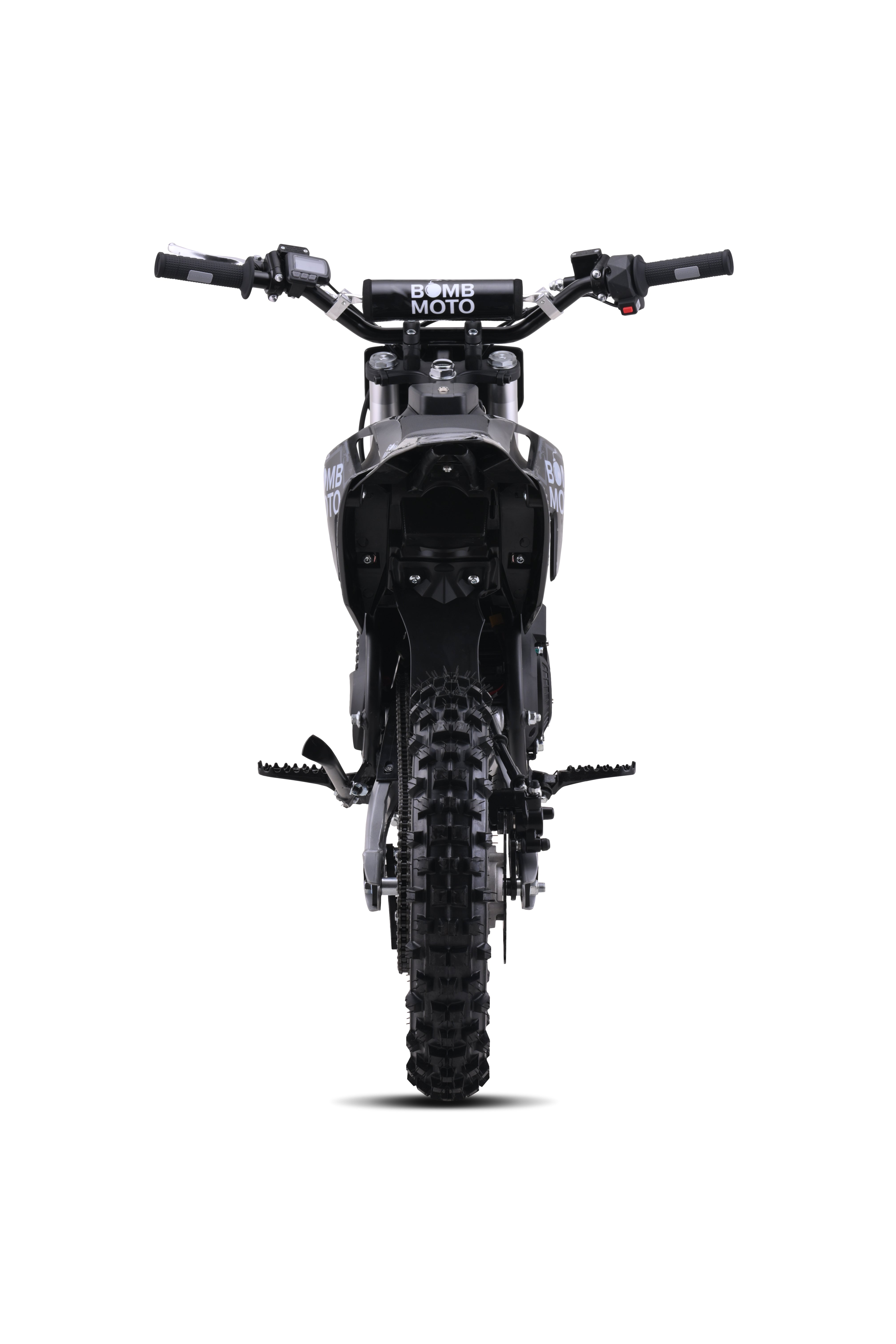

B1 (Complete Bike) - DJ
The new 2026 B1 Complete Bike is a major upgrade to the popular B1 platform. Designed for a turn key solution, this bike offers the rider the ability to get on the trail quicker. This complete version is equipped with a custom-collaboration QS120 45H motor, featuring their highest RPM rating to date. Engineered for serious performance, this motor can comfortably handle 100 peak amps, delivering exceptional torque and power for its class.
This isn't your typical 60V bike, featuring an 80a constant battery and capable of high RPM settings. The controller is the same as a FarDriver 72300 so later the rider can customize as they wish.
At a modest stock standard tune of 70 amps, the B1 can hit 45 mph and 8,500 RPM—making it one of the most versatile and exciting bikes available in its category.
For this limited initial pilot launch, we are discounting the B1 complete bike.
NEW Product Upgrades
New 1,000 lb rear shock • #35 chain and sprockets • New, taller aluminum handlebar with cross bar • Upgraded master brake cylinder • Strengthening welds to seat and swingarm • Standard rim locks • Blacked-out triple clamp & riser • Improved number plate mount • Improved fasteners
B1 HIGHLIGHTS
• An affordable DIY electric dirt bike platform
• Mid-drive motor (recommended 5kW peak power)
• 45 mph recommended top speed
• High-performance moto brakes w/ergonomic levers
• Ships from a US company in California
• Just add battery, controller/cable... and go!
• Bomb Moto battery available
Tested & Proven
The B1 has been aggressively tested in real-world conditions, resulting in dozens of enhancements to the latest model. Enjoy peace of mind from hundreds of hours of R&D in the Bomb lab.
Your Platform for Customization
Bomb Moto puts creativity in the customer's hands. Add your preferred battery, controller and throttle to build a custom e-moto bike - for much less than buying a complete bike!
MINI MOTO. BIG FUN.
Sized similar to a 110 cc trail bike, the B1 chassis has a 28-inch seat height and 2-inch lowered footpegs for increased legroom.It's a great fit for youth, newer riders and adults seeking a fun DIY pit bike project.
KEY FEATURES
Specifications
Motor
QS120 70H BLDC inner rotor motor, 60mm magnets, 5 poles
Rating: 4,900rpm (higher w/ flux)
Rated: 2,000w, 80a, 72v, 120NM torque
Peak Power: 11kw
Top Speed: 50mph+ (depending on controller/tune)
Recommended Tune: 125a (150a peak for max 20 seconds)
Gear Ratio: 1:2.35
Sprocket: 14-tooth
Waterpoof Rating: IP66
Thermic Probe: KTY82/122 included
Working Temperature: 70-120 degrees Celsius (150C peak)
Hall Sensor: Single hall set with waterproof connector
Cooling: Air
Max Efficiency: <93%
Battery Line: 150a peak (recommended)
Gear reduction: Yes
Chassis & Components
Frame: Steel
Swingarm: Aluminum
Triple clamp: Forged Steel
Handlebar: Aluminum, 31" wide, 22mm diameter, crossbar (not pictured)
Suspension, Front: Inverted 48mm fork, 170mm travel (shorter than pictured)
Suspension, Rear: Single shock, adjustable for rebound & preload, 57.5mm travel
Brakes: True hydraulic disc brakes, master cylinders w/fluid sites, braided brake lines, high-temp rotors

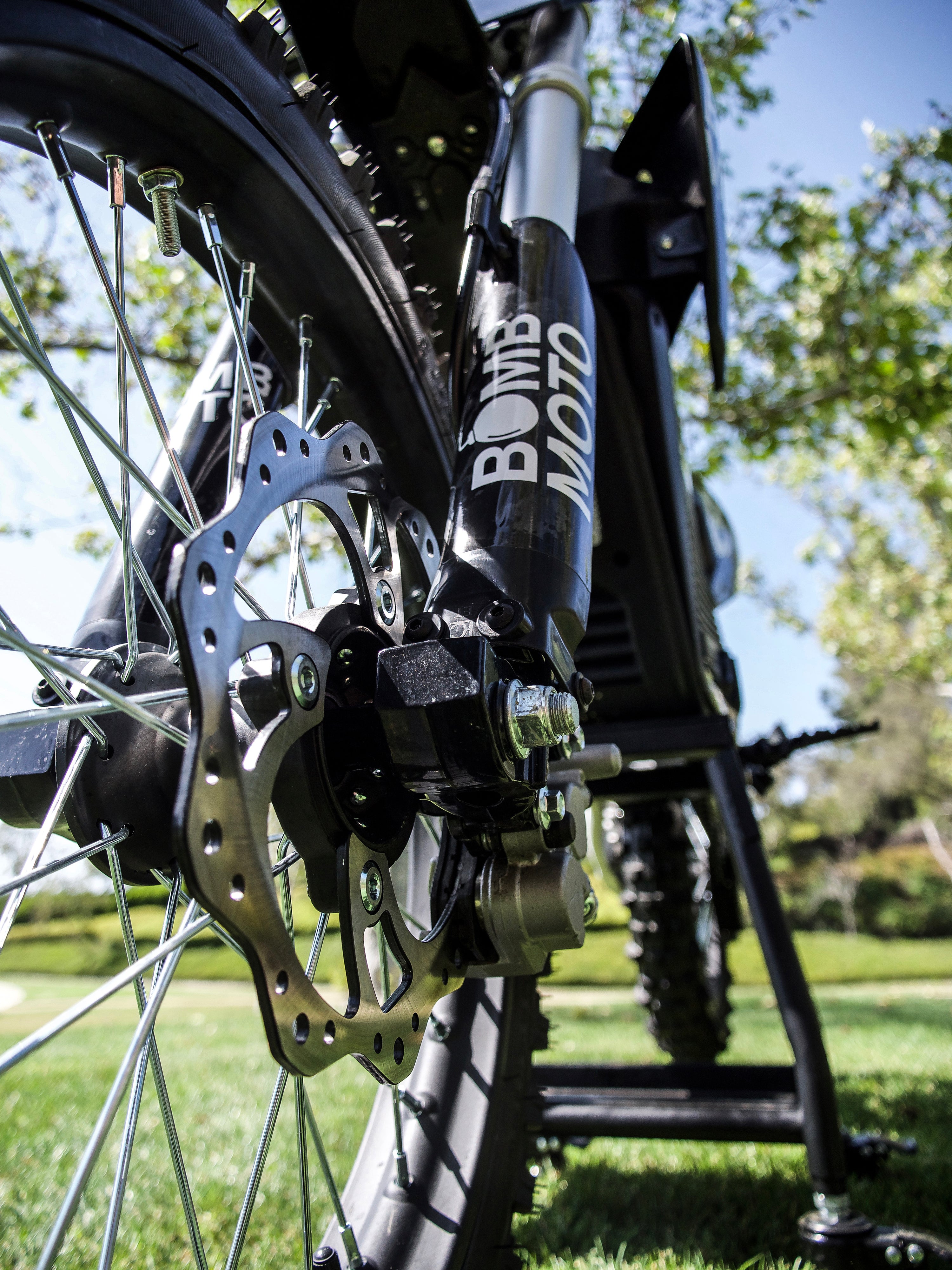

Front brake: Two-piston caliper, 220mm, 4mm wide disc
Rear brake: Single-piston caliper, 190mm, 4mm wide disc
Maximum rider weight: 210 lbs

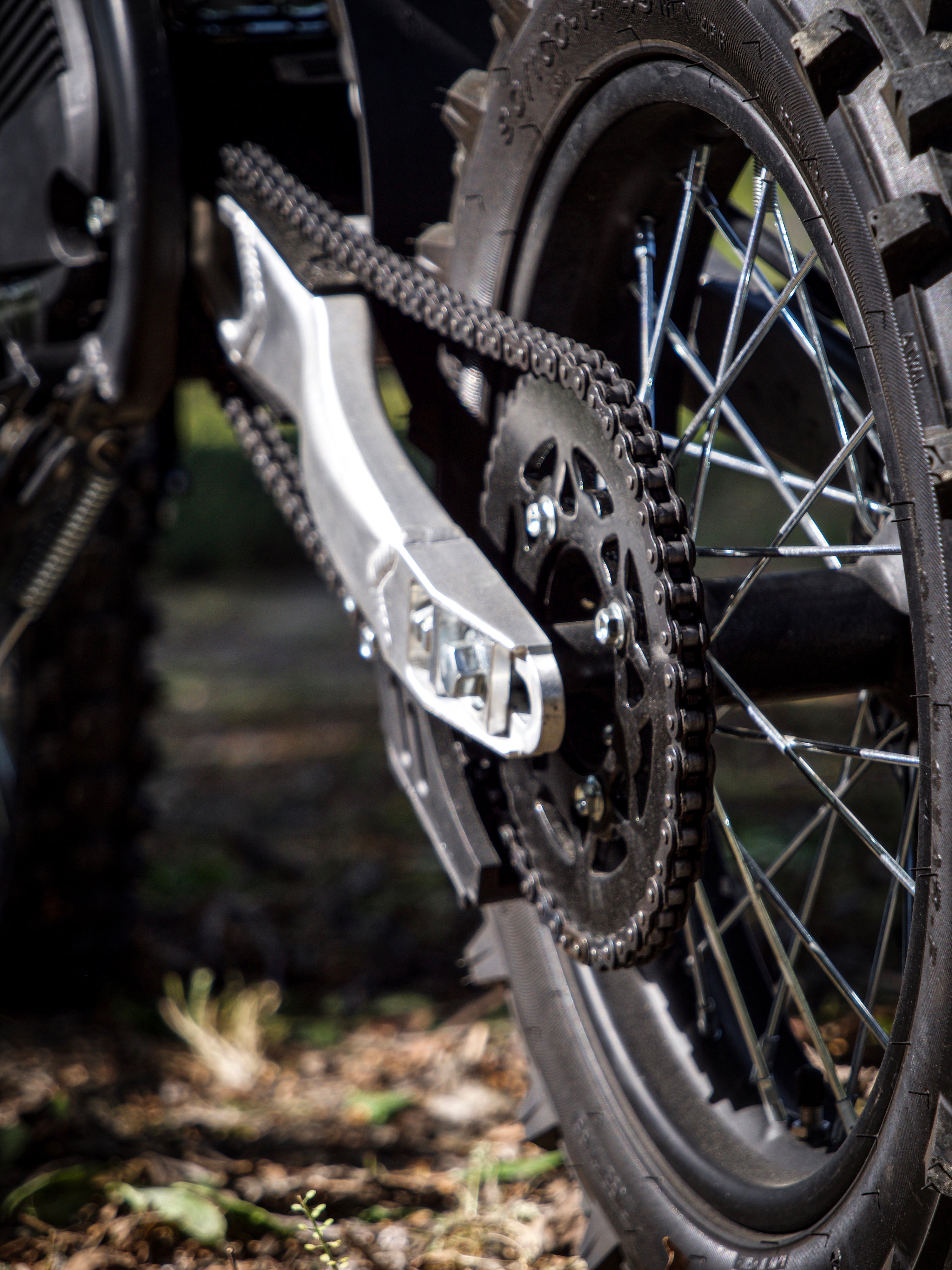

Chain: #428H
Durable plastics with Bomb Moto graphics
Controller mount (w/metal cover if not using mount). Controller mount designed for Far Driver. Note Far Driver may change mount position and heat sink size which may require some manual adjustment.
Battery level indicator in cockpit
Dimensions
Weight (with/without battery): ~150/120 lbs
Dimensions: 1,750 x 770 x 1,080mm
Wheelbase: 1,190mm
Seat Height: 810mm
Ground Clearance: 335mm
Sprockets: 14/48 (1:3.43)
